• A project is one canvas: a tree of nodes starting from a single root node.
• From the root, large section nodes branch off (e.g. one section per feature).
• From sections, further block nodes branch off. Blocks hold Markdown.
• A canvas is stored as a single, plain .md file — node metadata (ids, positions, edges) lives in HTML comments, so the file still renders sensibly in GitHub or any plain Markdown viewer, and diffs cleanly in git.
• Markdown inside a block can contain fenced code. A fence can be marked runnable; running it executes the code and (optionally) writes the result back into the same node, right under the code, so nobody has to re-run it just to see what happened last time.
• A runnable fence can declare deps= on other blocks — running it runs its whole dependency chain first, make-style, with nothing run twice. Blocks can also share document-scoped config values (declared once as meshfox:var), each block opting in individually via its own env= attribute — so running one block never prompts for a variable only some other block needs. A ```button fence is the same deps=/name=/default= machinery with no real code of its own — a prominent shortcut button, captioned by its own body (and, via name=/default=, a short CLI alias) for a chain that lives elsewhere in the document — see SPEC.md's "Button fences".
• Three ways to interact with the same files:

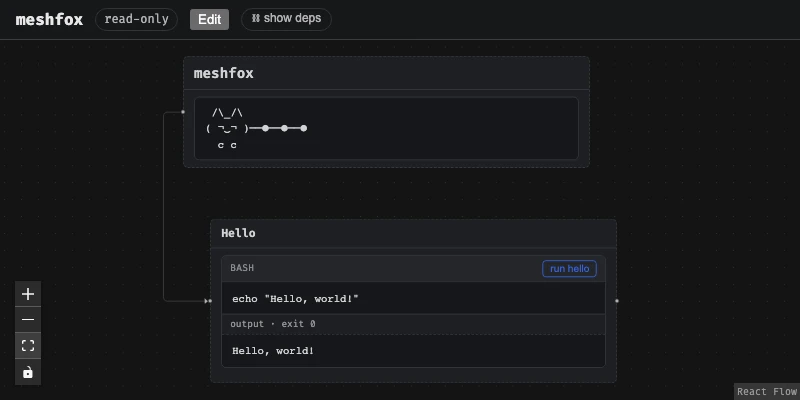

  • a browser UI (canvas view + block runner) backed by a small Rust server — opens read-only, so pulling up a canvas to look around never one-click-modifies it: running a block is always allowed (you're still explicitly clicking "run", and it's the whole point of a canvas), but a cached block's output isn't written back to the file until an explicit "Edit" button is clicked, which also unlocks dragging, resizing, and saving layout. Output streams into the browser live as the block runs (not just once it's finished), and a running block gets a Kill button, for when one hangs.
  • a CLI that runs blocks non-interactively, make-style, for use in scripts/CI — meshfox list prints every runnable block as a tree, so there's no need to go spelunking through the file to find out what's runnable. meshfox run streams output live too (the same async, killable executor as the browser UI); Ctrl+C kills whichever step is currently running, whole process group and all, and stops there — whatever earlier steps in the chain already completed stays cached.

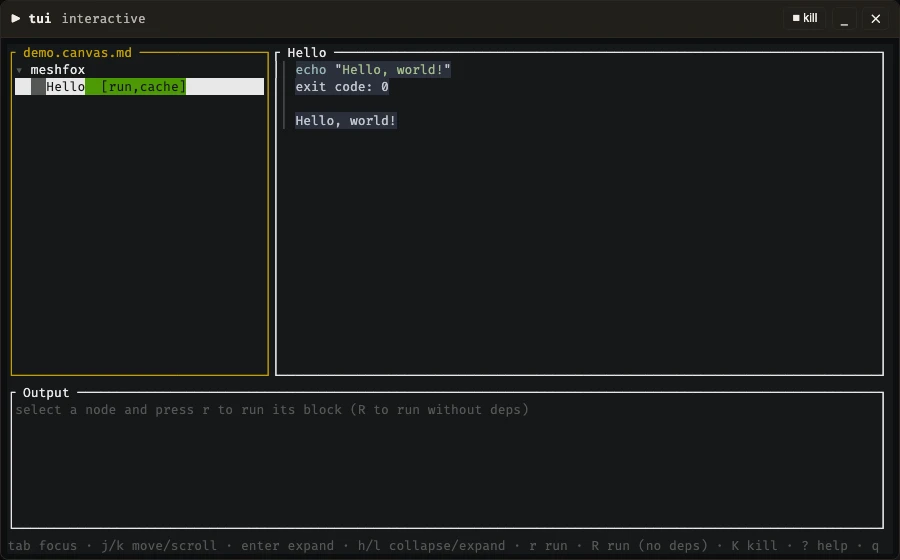

  • a terminal UI (meshfox tui) — the browser's tree-and-block-runner experience without leaving the terminal: browse the node tree, read a node's rendered body (syntax-highlighted code, images), and run blocks with the same live streaming/kill/cache behavior as the other two. See "Terminal viewer" under Usage below.
• Beyond editing and running: a built-in Starlark constraint system (meshfox check) lets a canvas validate its own consistency, and a canvas can be exported to a static HTML site or a PDF (both experimental — see Usage below).

meshfox canvas format

Reference spec for .canvas.md. Also available at any time via meshfox spec.

A canvas is a Markdown outline: heading nesting is the node tree; bookkeeping (id, position, extra edges) lives in HTML comments, invisible to any normal Markdown viewer. Model comes from JSON Canvas (jsoncanvas.org); this format moves the same tree/graph-of-Markdown-nodes model into plain Markdown instead of JSON, for readable diffs and hand-editability.

File structure

• # (H1) — exactly one per document. Content up to the first ## is the root node. Always a node, no marker needed (it's the only H1).
• ##, ###, ... — a heading is a node only if immediately followed by a <!-- meshfox:node ... --> comment. Without one, the heading (and everything under it) is just prose inside its enclosing node — headings can be freely used for sub-structure without fragmenting the canvas. A node's parent is the nearest enclosing shallower node heading (or root) — unless overridden by parent= (below).
• <!-- meshfox:node ... --> — right after a heading line. Turns the heading into a node and holds its bookkeeping as key="value" attributes: id, type, x, y, w, h, color, tags, parent, fold, edgeLabel, createdAt, updatedAt (see "Timestamps" below). All optional; a bare <!-- meshfox:node --> is enough. id defaults to a slug of the heading text; only write it explicitly for a stable handle that survives renames (e.g. because an edge references it). First write-back (running a cached block, saving layout) pins the id used, so identity is stable afterward. x/y are absolute document coordinates for every node except a direct child of a group node (see "Node types" below) — for a group member, x/y are relative to that group's own x/y instead (its own top-left corner), so moving the group moves every member with it without rewriting each one's stored position. A group's own x/y is an optional anchor, draggable like any other node's — but its w/h stay always derived from its members' own resolved boxes, never stored, even once it has an anchor. fold="true" or fold="false" overrides, for this one node only, whether the web UI shows it folded or expanded by default — see "Options" below for the document-wide default this overrides. Omitted (the default) means "no override": follow the document's own default. tags="a,b,c" is a comma-separated list of free-form labels — purely descriptive (no structural meaning), shown as small chips on the node in the web UI. parent="other-id" overrides the heading-nesting-implied parent — needed once a subtree is already ###### (H6, CommonMark's ceiling: headings can't nest any deeper), where a further child has nowhere left to go but another ###### heading, which plain heading nesting alone would read as a sibling rather than a child. Nesting past H6 keeps working — every deeper node just keeps writing ###### and disambiguates with parent= instead of heading depth. Written automatically ("add child" in the UI reaches for it exactly when it's needed); hand-editing it is only for restructuring an already-flattened deep subtree. edgeLabel= is arrow text for the structural edge from this node's own parent into it — the implicit nesting edge has no line of its own to carry attributes the way a meshfox:edge does (below), so it lives here instead, on the child end: "the label of the edge that points at me". Unlike a meshfox:edge, a structural edge has no color/style/arrowhead attributes of its own — just this one piece of text. Omitted means no label, same as every other optional attribute here.
• <!-- meshfox:edge from="other-id" ... --> — one per line, right after a node's meshfox:node line. Declares an extra incoming edge from another node, for graphs that aren't a clean nesting tree. Any number allowed, in addition to the one implicit nesting-parent edge. Besides from, an edge line accepts the same kind of optional styling attributes the web UI's on-canvas edge editor writes: label (arrow text), color (hex or a "1"–"6" preset, same palette as a node's own color), style ("solid", "dashed" — the default look when omitted — or "dotted"), arrowStart/arrowEnd ("none" or "arrow" — an edge with neither set gets an arrowhead only at arrowEnd, matching the pre-styling default), and tags (comma-separated, same convention as a node's own). All are omitted from the line unless explicitly set — a plain from="other-id" with nothing else is exactly the old, pre-styling form. These extra (meshfox:edge) edges render as a curved connector in the web UI, distinct from the structural nesting tree's right-angle routing.
• <!-- meshfox:canvas --> — optional, first line of the file. Marks a plain *.md file as a canvas even though it isn't named *.canvas.md (used so this doubles as auto-discovery hint; not required for parsing — any correctly-structured file parses as a canvas regardless of name).

Timestamps

createdAt/updatedAt on meshfox:node are optional RFC3339 timestamps (any valid offset, e.g. 2026-08-29T10:15:00Z or 2026-08-29T13:15:00+03:00) — a malformed value is a meshfox validate error, same as an unknown type=. Both are absent by default, on every document: meshfox is first and foremost a documentation format, and automatic timestamp bookkeeping isn't something most documents want. Automatic stamping is opt-in per document, via the auto-timestamps option (see "Options" below).

• createdAt — stamped automatically by meshfox node add (and the web UI's "add child") at creation time, for a document that declares auto-timestamps. Never rewritten afterward except by an explicit node meta --created-at (for backfilling/importing existing data with a real historical date — works on any document, auto-timestamps or not).
• updatedAt — stamped automatically whenever a node's own body text actually changes: node body, node append, a cached block's output being written back, the web UI's in-node editor. A body write that comes out byte-identical to what was already there (re-running an unchanged cached block, say) never touches it — so re-running a chain with no real output changes doesn't manufacture a diff on its own. Never touched by a pure position/style/tag change (node meta) — only body writes bump it, so it stays a signal of "when did this node's own content last change", not "when was this node last touched on the canvas at all". There's no way to set it directly (no --updated-at flag anywhere) — it wouldn't mean much once it stopped being trustworthy.

meshfox's own automatic stamps are always UTC (Z) — a hand-typed --created-at may use any offset, but two auto-stamped values are always directly, correctly string-comparable against each other regardless. Mixing offsets (an auto-stamp and a hand-typed one with a different offset) doesn't compare correctly as plain strings — see "Constraint fences" below for a way around that (.created_at_ts/.updated_at_ts, offset-independent by construction).

A document has to declare the auto-timestamps option (see "Options" below) to get either stamp from either automatic path at all — insert_child_node writes no createdAt, and set_node_body writes no updatedAt, unless it's declared. An explicit node meta --created-at works regardless of the option either way; it's a separate, deliberate manual path, not gated by it.

Node types

type= on meshfox:node picks one of JSON Canvas's four kinds. Defaults to (and is omitted for) text.

• text (default) — freeform Markdown body.

• group — purely organizational; body must be empty. Children are whatever nests under it structurally (no separate containment mechanism); a direct child's own x/y is relative to the group's, not absolute — see x/y above.

• file / link — body must start with exactly one Markdown link on its own line, [label](target), optionally followed (after a blank line) by a plain-prose caption — inline formatting (bold/italic/inline code/links) is fine, but no block-level Markdown: no headings (including the setext ===/----underline form), lists, block quotes, code fences, tables, images, thematic breaks, or raw HTML. Same-line trailing text right after the link's closing ) is still rejected — a caption has to be its own paragraph. A file node also accepts two optional display attributes on its meshfox:node line:

  • display="link" (default) or display="code" — code shows the target's own file content as a read-only, non-runnable syntax-highlighted preview instead of a plain clickable link. The file is read fresh from disk on every view, confined to the canvas's own directory tree (same boundary include targets are resolved within) — never written back.

  • lang="..." — syntax-highlighting language hint for display="code" (e.g. lang="rust"). Optional; when omitted, the language is guessed from the target's file extension. Ignored when display isn't code.

  • interpreter="..." — a shebang-style command, e.g. interpreter="python3 -u" (word-split the same way a #!/usr/bin/env -S ... shebang line's own arguments would be — quoting is honored), to run against target, making the node runnable: interpreter target (the target's path resolved relative to the canvas's own directory, confined to it — same boundary display="code"/include targets are resolved within). Optional; omitted means the node isn't runnable this way. The web UI's "▷ run" button (next to "expand", in a runnable node's title bar) invokes this the same way it does a text node's default code block. A runnable code fence (see "Runnable code fences" below) can carry the same interpreter= attribute — this is that mechanism's origin.

    <!-- meshfox:node type="file" display="code" lang="rust" -->

    [main](./src/main.rs)


    <!-- meshfox:node type="file" interpreter="python" -->

    [seed data](./scripts/seed.py)


  link nodes don't support display/code/interpreter — their target is an external URL, not something meshfox reads from or runs off disk. A link node accepts its own single attribute instead:

  • preview="true" — fetches the target's OpenGraph metadata (title/description/image) and shows it as a card below the plain link, in both the web UI and the terminal viewer. false (the default, omitted from the file) shows just the plain link, same as before this attribute existed. Setting preview= on a non-link node is a parse error, same as an unknown type=.

    Fetched over the network on first view and cached in memory for the life of the meshfox view/meshfox tui process — not persisted, not shared across processes, and never retried within that process once a fetch has failed. Since a canvas file's link targets are often attacker-controllable (the file itself may come from an untrusted source), the fetch is hardened against SSRF: only http/https, resolved addresses that are loopback/private/link-local/etc. are rejected before ever connecting, and redirects are followed manually with the same check re-run on every hop.

    <!-- meshfox:node type="link" preview="true" -->

    [meshfox](https://github.com/orofarne/meshfox)


• include — same link-plus-optional-caption body as file/link, but the target (another .md or .canvas.md file) is spliced in dynamically by whatever consumer resolves includes — never written back to disk. run/validate see the bare link (and caption, if any), same as file/link. See "Includes" below.

Any other type= value, a non-empty group body, or a file/link/ include body that doesn't start with a single link (or whose caption carries block-level Markdown) is a parse error (meshfox validate catches these, plus a missing/cyclic/unparseable include target).

There's no node type for a constraint contract — a Starlark check is an embedded fence living in any node's ordinary body, alongside its prose and runnable code, same as a ```bash name="..." fence. See "Constraint fences" below.

Includes

type="include" dynamically splices another file's content into this node, resolved fresh every time a consumer asks for it (e.g. the server, before serving GET /api/canvas to meshfox view) — nothing is ever written into the including file. run/validate operate on a single file's raw text and never resolve includes; only validate reaches far enough in to catch a broken target, a parse error in it, or a cycle.

The target is told apart as a canvas or plain Markdown the same way auto-discovery already does: .canvas.md suffix, or a plain .md file that opens with the meshfox:canvas marker.

• canvas target — parsed and spliced in as real children. Every spliced node's id is namespaced {include_id}/{original_id} to avoid collisions with the including document (and with any other include spliced in alongside it), and every level is shifted down by the include node's own level. The include node itself becomes a group.
• plain Markdown target — has no meshfox structure of its own, so it becomes the include node's own body verbatim, except every heading in it is shifted down (clamped to H6, CommonMark's ceiling) by the include node's own level — so e.g. the target's top-level # doesn't read as a second document root once nested. The include node becomes text.

An included file can itself declare includes; those are resolved too, with a cycle (A includes B includes A) reported as an error rather than recursing forever.

What crosses the include boundary

Position (x/y) needs no special handling: a spliced node's coordinates are already relative to its nearest group ancestor (see "File structure" above), and the include node itself becomes a group, so an included subtree lays out correctly with no rewriting at all. A structural meshfox:edge inside the included content is rewritten to the namespaced id automatically, same as parent.

Two other features interact with includes very differently, because one runs against the raw single file and the other against the fully composed tree:

• Runnable-fence deps= (see "Runnable code fences") never crosses an include boundary, deliberately: run/list/deps::validate all work on one file's raw text (per "Includes" above), so a deps= reference is only ever resolved against that same file's own, un-namespaced node ids. A block inside an included canvas can't be depended on from the including document, or vice versa — and an internal cross-node deps="other-node/block" reference inside a file stays valid whether that file is run standalone or spliced into a parent, precisely because it's never evaluated post-splice.
• Constraint fences (see "Constraint fences") are the opposite: meshfox view, the terminal viewer, and meshfox check all evaluate constraints against the fully resolved, composed document — so a constraint fence living inside an included canvas is checked there too, and self/ doc.children()/.descendants()/.nodes_with_tag(...) navigation from it sees the same spliced-in tree everything else does. The one thing that doesn't survive splicing is a constraint script that hardcodes a literal node id (doc.node("some-id")): once the file it's written in gets included elsewhere, that id is renamed to {include_id}/{original_id} and the hardcoded reference stops resolving. Prefer relative navigation (self, .children(), .descendants()) or tag lookups (.nodes_with_tag(...)) over a literal id in any constraint that might end up inside an included file.

Runnable code fences

Lives inside a node's Markdown text, as fence-info-string attributes:

```bash name="build" cache
cargo build --workspace
```

• name — identifies a fence for meshfox run/output caching; must be unique within its node. Normally required to make a fence runnable — except a node may have one fence with no name at all, which is runnable too, implicitly named after its own node id. A second unnamed fence in the same node makes the omission ambiguous, so neither gets a name (same as any unnamed fence today — not an error, just not runnable). This is what lets meshfox run/list skip a redundant trailing block-name argument that would just repeat the node's own id — see "CLI" below — and applies the same way to a fence whose explicit name happens to already match its node's id.

• cache — optional flag (cache or cache=true); opts into persisting output back into the file.

• default — optional flag (default or default=true); marks this fence as its node's default block — the one meshfox run <path-to-node> addresses without a trailing block name (see "CLI" below). A fence whose (implicit or explicit) name already equals its own node's id counts as default too, without needing this flag. At most one block per node may be default (explicitly, implicitly, or one of each) — meshfox validate reports a conflict as an error.

• deps — optional, comma-separated list of other blocks this one runs after. Each entry is either a bare block name (a block in the same node) or node-id/block-name (a block in another node, addressed by node id the same way meshfox:edge from= addresses nodes). Running a block always runs its full dependency chain first, automatically — each dependency's own deps are resolved transitively, in order, with no block run twice even if several blocks in the chain depend on it. A cycle, or a deps entry naming a block that doesn't exist, is a meshfox validate error. A trailing ! on an entry (deps="build, schema/migrate!") ties that dependency's own web UI/TUI session-freshness decision to this block's: whenever this block ends up running for real this pass (not skipped as "already fresh"), the ! dependency is forced to run for real too, regardless of its own fingerprint or always; when this block is itself skipped, the ! dependency is left to its own normal freshness decision instead — see always below for the plain (unconditional) alternative, and why a ! edge exists as a separate mechanism from it.

• env — optional, comma-separated list of declared meshfox:vars (see "Variables" below) this block wants in its own process environment. Each entry is a bare name (pass the declared variable through under the same name) or local=name (expose it under a different name in this block's own environment) — a leading $ on the variable-name side is accepted and stripped, but purely cosmetic: env="$X,LOCAL=$Y" and env="X,LOCAL=Y" mean exactly the same thing. A block with no env= never resolves or prompts for any declared variable, however many the document declares as a whole — this is what scopes "does running this block need to ask about anything" to the block itself, not the whole canvas. An env= entry naming a variable nothing declares is a meshfox validate error.

• interpreter="..." — a shebang-style command, e.g. interpreter="python3 -u", to run this fence's code under instead of the implicit bash/sh executor: the fence's own body is written to a fresh temp file and run as interpreter target-tmpfile (word-split the same way a #!/usr/bin/env -S ... shebang line's own arguments would be — quoting is honored, so interpreter="env \"my python\" -u" runs env with my python as a single argument). Optional; when set, lang no longer has to be bash/sh for the fence to count as runnable at all — lang becomes purely a syntax-highlighting hint, same role it already plays on a file node's own interpreter= (see "Node types" above, which this attribute is the fenced-block counterpart of — both parse the same way). Works on a tty block too — the interactive session runs directly under interpreter (given a real pty/terminal) instead of bash, e.g. interpreter="python3 -i" for an interactive Python REPL.

  A whole word starting with $ (e.g. $PYTHON in interpreter="$PYTHON -u") is substituted with the value of a declared meshfox:var of that name before word-splitting runs interpreter target-tmpfile — the same resolution/prompting machinery env= uses, just scoped to interpreter= instead of the block's process environment. Unlike env=, the $ here is mandatory, not cosmetic (interpreter= mixes literal words and variable references, so dropping it would make interpreter="PYTHON -u" ambiguous between "run the literal program PYTHON" and "run whatever PYTHON resolves to"); only a whole token is substituted, not $NAME embedded inside a larger word (interpreter="/opt/$NAME/bin/python" stays literal). The natural use is a from=-computed var — e.g. a setup block that creates/updates a venv and reports its interpreter path via MESHFOX_VARS_OUT (see "Computed variables" below) — so interpreter="$PYTHON -u" always runs under whatever interpreter that block last resolved to, without hard-coding a path in every fence that needs it.

• tty — optional flag (tty or tty=true); this block wants a real interactive terminal instead of the usual captured/streamed output — e.g. bash on its own (a login-style shell), or anything else that reads from its own stdin expecting a real terminal (ssh, git commit's editor, a REPL, a curses UI). Mutually exclusive with cache (meshfox validate error) — an interactive session isn't the deterministic "exit code plus text" cache saves/replays. A tty block may be a deps=/from= target of any other block, tty or not — each runner (CLI, TUI, the web UI) already hands the terminal/pty over at exactly that point in the chain and continues once it exits, the same way two chained tty blocks already hand it over twice, back to back (each still running its own deps= first, same as any other block). See "Interactive (tty) blocks" below for how the CLI and web UI actually run one, and that section's own autoclose for returning to the canvas automatically once it exits.

• service — experimental, may change — optional flag (service or service="true"); starts a long-lived background process instead of one that runs to completion — a dev server, say. Unlike every other runnable block, "done" fires the moment the process is spawned, not when it exits: a deps= chain that reaches a service block continues immediately, without waiting for it. Mutually exclusive with tty/ cache (meshfox validate error) — a service is non-interactive by definition, and never exits under normal operation, so there's no deterministic "exit code plus text" for cache to save/replay either. A service block may freely be a deps=/from= target of another block, or have its own deps= — the chain-walk semantics already generalize, since "done" is just defined differently for it. See "Service blocks (experimental)" below.

• output="markdown" — optional; changes how a cached run's captured stdout is written back (see "Cached output" below). By default it's wrapped in a passive ```text fence, shown verbatim. With output="markdown", it's spliced in as real Markdown instead — useful for a command that already prints Markdown worth rendering, e.g. a pandas DataFrame via df.to_markdown() (needs the tabulate package), which then renders as an actual table rather than preformatted text. Any other value (or omitting the attribute) keeps the default text rendering.

Supported languages without an interpreter= attribute: bash (sh is an alias for it). A fence in any other language never counts as runnable at all — not with an explicit name=, and not as a node's sole unnamed fence — unless it carries its own interpreter= (see above), which makes it runnable under that command regardless of lang. This is what keeps an ordinary Markdown document's own example fences (a yaml config sample, a json snippet, ...) from being mistaken for something to run just because meshfox was pointed at the file directly (the meshfox:canvas marker/.canvas.md suffix is only required for auto-discovery — see "CLI" below — an explicitly-given path still parses whatever heading structure it finds) — a plain documentation fence has no interpreter= either.

```python name="seed" interpreter="python3 -u" cache
print("seeding...")
```

```bash name="build" cache
cargo build --workspace
```

```bash name="test" cache deps="build"
cargo test --workspace
```

Running test here always runs build first.

In the web UI and the TUI (long-lived processes — meshfox view/meshfox tui, as opposed to a one-shot meshfox run invocation), running a chain this way skips re-running a pulled-in dependency (never the block actually requested — that one always runs for real) that already ran successfully earlier in the same session and hasn't changed since — same meshfox_core::fence::fingerprint (code/lang/interpreter=/env=/deps=) comparison crate::output's cached-output staleness uses, so editing a dependency's code (or its env=/deps=) makes it eligible to run again immediately, no explicit cache-busting needed. A skipped step still folds forward whatever it last wrote via from= (see "Computed variables" below), so a later step in the same chain that depends on that value isn't affected by the skip. Restarting the process starts fresh — this is session-scoped, never written to disk. Applies the same way whether the chain ends in a tty step or not — the web UI's /api/run/tty WebSocket consults the same per-session record /api/run does, not a separate one.

This skip cascades: if a block ends up running for real this pass for any reason (below), everything that transitively depends on it — via deps= or an implicit from= reference — is forced to run for real too, even if its own fingerprint alone would have called it unchanged. Otherwise a step downstream of one that just did something different (dropped a table, regenerated a file from= feeds elsewhere, ...) could reuse a cached result that was only ever valid against what that dependency looked like before this run, the same way a make/Bazel-style build propagates a rebuild to everything downstream of a changed input — see meshfox_core::deps::compute_forced_reruns.

always — optional flag (always or always="true"), opts a block out of the fingerprint-based part of this skip entirely: even unchanged and already run successfully this session, a ⛓ run chain that pulls it in as a dependency still runs it for real every time, whichever block pulls it in — and, per the cascade above, so does everything that depends on it, transitively, on every single run. For a step whose side effect isn't captured by "looks unchanged" — a migration that always drops and recreates a table before loading fresh data, say, where re-running is the whole point even though the migration script itself never changes between runs:

```python name="migrate" env="PGHOST,PGPORT,PGDATABASE,PGUSER,PGPASSWORD" always
...
```

That blanket "every consumer, every time" reach is exactly what makes always the wrong tool when only one particular consumer actually needs this block fresh, and that consumer is otherwise expensive enough to be worth still skipping when nothing changed (a bulk data load, say) — an always migration ahead of it would now force that load to rerun on every single chain run too, session-freshness skip defeated for it entirely. For that narrower "run exactly when this one consumer runs, and only then" shape, mark the consumer's own deps= entry for it with a trailing ! instead (see deps above) — deps="paths/resolve,schema/migrate!" on the loading step, with plain (no always) migrate, ties migrate's freshness to the loading step's own decision, rather than forcing it (and cascading from it) on every run regardless of what anything downstream actually needs.

Button fences

A ```button fence is an ordinary runnable fence — name=/default=/ deps=/always all mean exactly what they already mean above, with no new rules — whose own body is never executed as code. Its whole point is its deps= chain: a prominent shortcut to run some other block's chain from wherever in the document is most convenient to put a button, rather than wherever that block itself happens to live.

```button name="full-import" default deps="parsers/step-5"
🚀 Запустить полный импорт
```

• There's no separate label=/title= attribute — the fence's own body is its caption, rendered directly on the button (a web UI/TUI's usual small run icon, but as one prominent, human-readable button instead). Falls back to the block's own name when the body is blank.
• The body is never executed — running this block never treats it as code. meshfox validate rejects interpreter=, cache, env=, or tty alongside lang="button": all four presuppose a real process of the block's own, which a button fence never has.
• name=/default= are what give a button its "alias": a button fence living directly on the root node with name="full-import" is reachable as meshfox run full-import for free — the root's own blocks need no path segments — the same addressing every other runnable fence already has, nothing new. deps= can name another button fence just as freely as any other block; the usual cycle detection covers it the same way.
• always is deliberately not implied by lang="button" — see its own entry above ("the block actually requested... always runs for real"): the button itself never benefits from always, and forcing it onto the button's deps= chain would conflict with always's existing "every consumer, every time" semantics. A pipeline step that genuinely needs to never be session-skipped still opts in with its own always, same as it would with no button involved.
• Scope: deps= never crosses an include boundary (see "What crosses the include boundary" above) — neither does a button's own addressing.

Constraint fences

A ```starlark constraint fence, living in any node's ordinary Markdown body alongside its prose and runnable code, is a sandboxed Starlark contract over the document tree — a way to assert invariants a canvas should hold (e.g. "every node tagged table has exactly one file child") as part of the document itself, checked by meshfox check rather than enforced only by convention. There's no dedicated node type for this (see "Node types" above) and no restriction on what else shares the node's body — a node may carry prose, runnable fences, and any number of constraint fences, in any order:

#### Entities
<!-- meshfox:node -->

```starlark constraint
for n in self.descendants():
    if "table" in n.tags:
        files = [c for c in n.children() if c.type == "file"]
        if len(files) != 1:
            fail(n.id + ": expected exactly one file child, got " + str(len(files)))
```

##### Users
<!-- meshfox:node tags="table" -->
...

The constraint flag (```starlark constraint, mirroring the bare cache/default/tty flags on a runnable fence) is what opts a fence in — a plain ```starlark fence with no flag is left alone, e.g. a documentation example showing Starlark syntax that was never meant to actually run. An optional name="..." attribute labels a fence for meshfox check's output when a node carries more than one (see below); unnamed fences are identified by their enclosing node's id alone if it's the node's only one, or <node-id>#<n> (1-based, in document order) when it isn't.

There's no separate "document" object: doc is simply the root node, and every node — doc included — exposes the same navigation methods, so a constraint scopes a check to its own subtree with self.descendants() the exact same way it would reach the whole document via doc.descendants(). self is the node whose body the fence lives in — a constraint typically governs the subtree of the node it's placed in, so a natural place for one is directly in the node that's the natural parent of whatever it's checking (like Entities above), rather than needing a dedicated node of its own just to sit above that subtree.

The script sees:

• doc — the document's root node.
• self — the node whose body this fence lives in, so a script can find its place in the tree without hardcoding its own id.
• On every node (both of the above, and any node reached through them):
  • .id, .title, .type (a string, e.g. "file"), .parent (a string, or None for the root), .tags (a list of strings), .text (its own raw Markdown body, unrendered) — plain read-only fields.
  • .created_at, .updated_at — the node's own createdAt/ updatedAt (see "Timestamps" above), as the literal RFC3339 string, or None if unset. .created_at_ts, .updated_at_ts — the same two values as a Unix timestamp (int), or None — Starlark has no datetime type, so this is what makes real arithmetic possible (e.g. self.updated_at_ts - other.created_at_ts > 86400) and, being offset-independent by construction, compares correctly across nodes even when their own created_at/updated_at strings carry different literal offsets (plain string comparison doesn't). There's no now() builtin — a constraint comparing against "how old is too old" needs a literal cutoff (timestamp or int), not a relative one: exposing the evaluator's own wall-clock time would make the same script pass or fail depending on when meshfox check happens to run, breaking the same-input-same-output property every other constraint here has.
  • .children() — its direct structural children (same tree Canvas::children walks — not extra meshfox:edge parents).
  • .descendants() — everything in its subtree (children, their children, ...), not just direct children — the usual way to scope a check to "this fence's own node's subtree" (self.descendants()) instead of the whole document (doc.descendants()).
  • .node(id) — the node with that id anywhere in the document, or None.
  • .nodes_with_tag(tag) — every node in the whole document whose tags includes tag, regardless of where it's called from. Prefer self.descendants() filtered by tag when a constraint should only govern its own subtree; reach for this only when a rule is genuinely document-wide.
  • .content() — a file-type node's own target, read fresh off disk and confined to the canvas's own directory (same boundary/cap the display="code" preview uses — see "Node types"), as a plain string. .json()/.yaml()/.toml() parse that same content each their own way, handed back as nested Starlark dicts/lists/strings/numbers/bools; .csv() parses it as tabular data instead — a list of dicts, one per row, keyed by header. All five return None — not an error — for anything that isn't a file node, has no target, doesn't resolve, or (for the four parsers) doesn't parse that way; a constraint decides for itself whether that's fail-worthy. This is the sandbox's one deliberate window onto something outside the document itself — but only a target the document's own author already committed to in the node's own link, and only when whatever's running meshfox check chose to make disk access available at all (see below).
• fail(msg) — records a violation without stopping the script, so one constraint can report every offending node in a single run instead of just the first. A script that never calls fail passes.

Beyond these, and Starlark's own built-ins (len, range, string methods, list/dict comprehensions, ...), the sandbox has nothing: no network, no way to see any other node's fully-resolved include tree, and no way to mutate the document — a constraint only ever reads and reports. The only I/O it can trigger at all is the five file-node methods above, and even those don't run arbitrary code or touch an arbitrary path: the target was the document author's own choice, visible right there as the node's link, and the read only happens when the tool driving meshfox check (or the server, evaluating every constraint on every canvas load) passes it a base directory to resolve targets against in the first place — an in-memory canvas that was never read from a real file makes every one of these calls return None. A file node spliced in from an include target resolves its own target against that target's own directory instead, same as any other relative reference in an included node's body — the tool-supplied base directory is only the fallback for a file node that lives directly in the document being checked. Evaluation is resource-bounded (instruction count, call depth, heap size); a script that times out or errors (syntax error, unbound name, ...) counts as a failing constraint, with that error as its one message. Each constraint fence gets its own fresh sandbox — nothing persists between them, and nothing carries over between one meshfox check run and the next; every file-node target that exists in the document is read and parsed once per meshfox check run (while preparing the fences to evaluate, not lazily per-fence), whether or not any fence actually calls these methods on it.

meshfox check runs every constraint fence in the document and reports pass/fail per fence, exiting non-zero if any fails (or if the file doesn't parse — validate's job, which check implies). Distinct from meshfox validate: validate asks whether the file parses as a well-formed canvas; check asks whether the document, once parsed, actually satisfies whatever rules its own constraint fences declare.

Interactive (tty) blocks

A tty block (see its flag above) hands its process the real terminal instead of the captured/streamed output every other block gets — CLI and web UI each do this differently, since only one of them actually has a terminal to hand over.

• CLI — before running a tty step, meshfox run checks that both stdin and stdout are an interactive terminal; if either isn't (piped, redirected, CI), it errors out rather than hanging or silently running non-interactively. When they are, the block's process is connected directly to the real terminal (not captured line-by-line the way every other block's output is) — a script can read from the user, run vim, prompt for a password, whatever a normal interactive shell command could do. Earlier steps in the same deps= chain still run captured/streamed exactly as usual; only the tty step(s) themselves take over the terminal, handing it back once each one exits.
• Web UI — meshfox view gives the block a real pseudo-terminal (not just piped stdout/stderr, which can't do cursor movement, raw input mode, or terminal-size queries) and streams it to an in-browser terminal, keys typed there going back to the process's stdin. Clicking run on a tty block opens this as a floating panel over the canvas (draggable/collapsible, like the node text editor), rather than filling in the node's own inline output area the way a normal run does.
• Either way, output from a tty block is never written back into the file — that's what the cache conflict (above) rules out.

By default, once a tty block's process exits, its exit code (and whatever it last printed) stays visible until a deliberate action returns to the canvas — a keypress in meshfox tui, closing the panel by hand in meshfox view — same as leaving a real terminal window open after a command finishes. autoclose (a flag, autoclose or autoclose="true"; only meaningful on a tty block — meshfox validate rejects it on anything else) skips that and returns to the canvas the instant the process exits instead:

```bash name="shell" tty autoclose
bash
```

This only affects meshfox tui/meshfox view (both long-lived, with a canvas to actually return to) — plain meshfox run has no such distinction to make, a tty step there always just hands the terminal back the moment its process exits, autoclose or not.

• A real terminal (CLI's own, or the web UI's pseudo-terminal) is a genuine tty, so the "commands run without a pseudo-terminal" note under "Cached output" below doesn't apply to tty blocks — a tool that auto-detects color support (cargo, git, ...) sees a real terminal and colors its output without needing --color=always.

Service blocks (experimental)

Experimental — the attribute name and behavior here may still change.

A service block (see its flag above) starts a long-lived background process — a dev server, most commonly — instead of one that runs to completion. Where every other runnable block's "done" means "exited", a service block's means "spawned": a deps= chain that reaches one continues immediately, and the process keeps running independently, tracked/observable/stoppable/restartable separately from the run that started it, until it's explicitly stopped or its owning process exits.

Ownership: a service is tied to the lifetime of whichever OS process spawned it — the meshfox view server, meshfox tui, or a meshfox run invocation. It's tracked in a lock file under .meshfox/services/ (gitignored local machine state, same convention as the venv/resolved-var caches) recording the owning process. If that lock file already names another live (or dead-but-unreleased) process when a service block is about to start, the user is always prompted — kill the recorded process and start fresh, or cancel (the block errors out) — never resolved silently either way, whether the recorded owner turns out to still be alive or not.

• Web UI (meshfox view) — a started service gets a second title-bar badge on its node (next to the constraint badge), green while running, red if it crashed; clicking it (or the toolbar's own aggregate pill, next to the constraints one) opens a panel listing every service this server process knows about — status, log, CPU/memory, uptime, and Stop/Restart. Closing every browser tab does not stop a running service or exit the server early — the whole point of tracking it here is that it survives a page reload.
• TUI (meshfox tui) — a node with a service block shows a small dot next to its title: white when idle, a smoothly pulsing green while running, red if crashed. v, with that node selected, stops it if running or restarts it otherwise; the footer shows a running/crashed count. Quitting the TUI (q/Esc) stops every service it owns first — unlike the web UI, there's no separate long-lived server behind a TUI session for a service to keep being tracked by once it ends.
• meshfox run — starting a service no longer means the command exits once its chain finishes: it stays attached, streaming each service's own output to the console (prefixed by block name), until either every service it started has stopped on its own or the user hits Ctrl-C — which stops all of them before exiting. A one-shot invocation that never started a service behaves exactly as before.

Restart is local only: restarting a service restarts just that one process, with the exact parameters it was last started with — it never touches, reruns, or even looks at anything that depends on it.

Variables

Document-scoped configuration values a canvas wants from whoever runs it — an install prefix, a log level, an API token — asked for once and then remembered, the same idea as CMake's cached variables or a ./configure step. Declared as <!-- meshfox:var ... --> comments, most naturally inside the root node's own body, where a declaration is document-wide and shows up in ./configure/the web UI's "Configure variables":

<!-- meshfox:var name="INSTALL_PATH" prompt="Install prefix?" default="/usr/local/bin" -->
<!-- meshfox:var name="LOG_LEVEL" type="select" choices="debug,info,warn,error" default="info" -->
<!-- meshfox:var name="API_TOKEN" secret -->
<!-- meshfox:var name="REGION" default="us-east-1" required -->

A meshfox:var may also be declared inside any other node — a node-scoped variable, for a value only one block (or a small cluster of related ones) genuinely needs, e.g. a search term only one ad hoc query block uses. It's visible only to env= on a runnable fence inside that node's own subtree (meshfox validate catches a reference from outside it — see meshfox_core::validate_var_scope — though run/view stay lenient about it, same as every other validate-only check); it's implicitly session (see below) whether or not session is written on it explicitly, so it's never written to the on-disk cache and never shows up in the document-wide configure list — asking about it up front, or remembering an answer past the current session, wouldn't make sense for a value this narrowly scoped. session only ever changes whether an answer is remembered, though, never whether one gets asked for — a variable with a default and no required still resolves silently from it, every time, the same as any other non-required declaration; being session just means there's nothing left afterward to fall back on before that default kicks in. For a value meant to be typed fresh each run despite having a sensible default (a search term like this one, not a fixed path), pair it with required too — the combination this section's own session bullet already calls out as guaranteeing "a real prompt on every run":

<!-- meshfox:var name="MANUFACTURER_QUERY" prompt="Manufacturer name" default="Sanofi" required -->

Variable names still share one flat namespace across the whole document regardless of where they're declared — a duplicate name=, root or not, is a meshfox validate/declared_vars error either way.

Attributes:

• name — required. What a runnable fence's own env= (see "Runnable code fences" above) refers to when it wants this variable — declaring one here doesn't, by itself, put it in any block's environment; that's opt-in per block, see "Consumption" below.
• type — string (default), int, bool, or select. Purely a hint for how to prompt (a bool prompts y/n, a select shows its choices as a menu, ...) and how a UI renders an input for it — an incoming value (from --set, the environment, the cache, or a typed answer) is never validated against it; it's just a string either way.
• prompt — question text to show when asking for a value; defaults to name itself.
• default — used if nothing else resolves the variable (see below). Mutually exclusive with default_var (meshfox validate error).
• default_var — default_var="OTHER_NAME": this variable's own default comes from another declared variable's resolved value instead of a literal string — e.g. a default install path computed by actually running pwd in some relevant directory (declare that as its own from=-computed variable, then reference it here by name). Not a $-prefixed overload of default= itself — default='s value is genuinely freeform text, where a $name convention would be ambiguous with a literal default that happens to look like one (unlike env='s dollar-stripping, which is safe only because an env= entry is always a name reference, never literal text). Mutually exclusive with a literal default and with from= (meshfox validate error either way) — a computed variable is never prompted for, so it has no default to supply in the first place.
• choices — comma-separated; required when type="select" and choices_var isn't given. Mutually exclusive with choices_var (meshfox validate error).
• choices_var — choices_var="OTHER_NAME", same idea as default_var but for choices (the referenced variable's resolved value is split the same comma-separated way a literal choices= already is) — e.g. a select's options populated by actually running aws list-regions. Requires type="select", same as a literal choices= does. Mutually exclusive with a literal choices and with from=, same reasoning as default_var.
• secret — flag (secret or secret=true). A secret variable is never read from or written to the on-disk cache (see below) and never pre-filled anywhere — the only way to supply one without an interactive prompt is --set/the process environment. It's asked for fresh every single time it's needed.
• required — flag (required or required=true). A required variable's own default is never taken silently, even when nothing else resolves it — it still needs one explicit interactive answer, the same as if it had no default at all, with default offered as the prompt's own pre-filled suggestion (so confirming it is just pressing Enter). This is only a one-time confirmation, not a standing "ask every run": like any other non-secret answer, whatever's confirmed is written to the cache, so the next run of any block referencing it resolves straight from there without prompting again. Without required, a variable with a default is simply used, never prompted for, unless it has no default at all (in which case it always needs an answer either way).
• session — flag (session or session=true). Never read from or written to the on-disk cache — unlike secret, input isn't masked; this is about lifetime (never remembered past the current meshfox run invocation), not confidentiality. Always true for a node-scoped declaration (one outside the root node) whether or not it's written explicitly — see above. Combined with required, this guarantees a real prompt on every run rather than silently falling back to a cached/default answer — e.g. picking which of several configurations to deploy, every time. A plain session without required still silently resolves from --set/the environment/a default when one of those supplies it, exactly like any other declaration — it just never remembers the answer for next time. A variable referenced by more than one block in a single meshfox run invocation is still only ever prompted for once within that invocation — session only skips the cache, not the same once-per-invocation reuse every other variable already gets (see "Consumption" below). Mutually exclusive with from= (a computed value is already never cached, so session on it would be a no-op).
• from — from="node-id/block-name" (or a bare from="block-name", meaning a block in the same node this variable is itself declared in — the same shorthand deps='s same-node form uses; for a root-declared variable that's the root node, same as before node-scoped variables existed). Makes this a computed variable: instead of being prompted/defaulted/cached, its value comes from actually running the named block and reading back what it wrote to its own MESHFOX_VARS_OUT file — see "Computed variables (from=)" below. Mutually exclusive with default/default_var, required, secret, session, and choices_var (a meshfox validate error to combine any of them with from) — none of those mean anything for a value that's never cached, defaulted, or prompted for. type/choices still apply, validated against whatever the source block actually produced.

Consumption (env=)

A meshfox:var declaration on its own does nothing to any block — it's only a name a fence's own env= attribute can reference (see "Runnable code fences" above). Only variables a block actually lists in its own env= are ever resolved or prompted for on its behalf, and only those end up in its process environment (under whatever local name it asked for): running a block that declares no env= at all never touches meshfox:var resolution, however many variables the document as a whole declares. This is what keeps, say, meshfox README.md run some-unrelated-block from ever being asked about an INSTALL_PATH that only some other block in the document actually uses.

meshfox run <path...> <a,b,c> resolves each requested block's (and its deps= chain's) own env= independently, right before that specific block runs — not the whole document's variables up front. If the same variable is referenced by more than one block in a single invocation (directly or via deps=), it's only ever resolved/prompted for once: the first block to need it answers the prompt, which is immediately fed back into that invocation's own resolved-answers (the same override slot --set occupies, not necessarily the on-disk cache — see session below), so every later block referencing the same variable in that same invocation just reads it from there without asking again.

Resolution

Resolving one declared variable (for whichever block's env= asked for it) tries, in order: an explicit override (meshfox run --set NAME=value, or a value submitted through the web UI's form) → the process environment → the on-disk cache (skipped entirely for secret/ session) → the declaration's own default (skipped entirely for required — see above). Whatever isn't resolved by any of those needs an interactive answer — a terminal prompt for the CLI, a form for the web UI — which, for a non-secret, non-session variable, is then written to the cache so a later run of any block referencing the same variable doesn't ask again (this is what turns a required variable's mandatory first confirmation into an ordinary cache hit on every run after).

The cache lives at <dir>/.meshfox/<filename>.env, next to the canvas file itself (e.g. examples/hello.canvas.md -> examples/.meshfox/hello.canvas.md.env) — a plain NAME=value-per-line file, meant to be .gitignored, the same way CMakeCache.txt usually is. It's safe to hand-edit or delete: deleting it just means every non-secret, non-session variable gets asked about again next time some block's env= needs it.

Computed variables (from=)

A meshfox:var with from= (see above) never goes through the override/env/cache/default/prompt chain the rest of this section describes — its value is computed, by running its from= block first and reading back what that block produced:

<!-- meshfox:var name="RESOURCE_ID" from="provision/create" -->

```bash name="create"
id=$(some-tool create-thing)
echo "RESOURCE_ID=$id" >> "$MESHFOX_VARS_OUT"
```

```bash name="deploy" env="$RESOURCE_ID"
echo "deploying $RESOURCE_ID"
```

• Why not just read the block's own environment? A process's environment is gone the moment it exits, regardless of what language it was written in — there's no portable way to peek at a finished child's env from outside. Instead, whenever a block being run is a from= target for some declared variable, meshfox hands it a fresh, empty file and tells it where via the MESHFOX_VARS_OUT environment variable — the block is expected to append NAME=value lines to it (same KEY=value-per-line format the var cache uses) before exiting. A temp file, not a pipe: no mkfifo/blocking-open deadlock risk, no kernel pipe-buffer size limit, and it works the same on every platform meshfox runs on. This needs zero per-language support in meshfox itself — the same reason CI systems facing the identical problem (GitHub Actions' $GITHUB_OUTPUT, etc.) converged on the same shape. A block that isn't a from= target for anything never sees MESHFOX_VARS_OUT at all.
• Only trusted on a 0 exit. A nonzero exit fails the run the same way any other step's nonzero exit does — whatever the block wrote (or didn't write) to its vars-out file is never read. A 0 exit that didn't produce a value for some variable declared from= it is also a hard failure, not silently treated as "still missing" — a computed variable is never prompted for, so there'd be nothing else to fall back to.
• Ordering. A block's from= target is an implicit dependency, exactly like an explicit deps= entry — running (or resolving the chain for) any block whose env= references a from=-declared variable automatically runs that variable's source block first. Unlike deps=, this edge is never skipped by --no-deps/the web UI's plain "run" (as opposed to "run chain") button: a deps= dependency might already have fresh cached output, a legitimate reason to skip rerunning it, but a from=-declared variable has no value at all until its source runs, so skipping that edge is never a meaningful choice.
• Never user-suppliable. --set/a submitted web form/the process environment/the on-disk cache can never resolve a from-declared variable, even if they name it — only an actual run of its from= block can, so a stale or hand-typed value can never impersonate a computed one. Consequently meshfox configure and the web UI's pre-run vars form never offer a from-declared variable as a field.

Dynamic default/choices (default_var=/choices_var=)

default_var=/choices_var= (see above) let one variable's default/ choices come from another declared variable's resolved value instead of a literal string — and since that other variable can itself be from=-computed, this is how a select's options (or a text field's suggested default) end up actually coming from running a script:

<!-- meshfox:var name="REGIONS_LIST" from="aws/list-regions" -->
<!-- meshfox:var name="REGION" type="select" choices_var="REGIONS_LIST" -->

```bash name="list-regions"
aws ec2 describe-regions --query 'Regions[].RegionName' --output text | tr '\t' ',' >> "$MESHFOX_VARS_OUT"
```

```bash name="deploy" env="$REGION"
echo "deploying to $REGION"
```

• Implicit ordering, transitively. REGION here doesn't declare from= itself, but resolving it requires REGIONS_LIST to already be resolved — so a block referencing REGION via env= gets an implicit dependency on aws/list-regions (via REGIONS_LIST's own from=) the same way it would if it referenced REGIONS_LIST directly. This chains arbitrarily deep: a default_var/choices_var reference is followed transitively, in both dependency-ordering and "which variables does this block actually need resolved" scoping, wherever either matters.
• Substitution, not delegation. Once REGIONS_LIST resolves, its value becomes REGION's own effective choices (split the same comma-separated way a literal choices= is) for exactly this resolution — REGION still goes through its own full override/env/ cache/default/prompt chain afterward, using that substituted value where a literal choices=/default= would otherwise sit. If the reference isn't resolvable yet (rare in practice, since the expected default_var/choices_var target is from=-computed and therefore already guaranteed resolved by the ordering above), the referencing variable is simply deferred rather than shown with stale or empty choices.
• Mutually exclusive with the corresponding literal attribute (default/choices) and with from= — see each attribute's own entry above. meshfox validate catches a default_var/choices_var naming a variable nothing declares, and a reference cycle.

CLI

• meshfox configure [canvas] — the one place that does walk every declared non-secret, non-session variable in the whole document, regardless of which (if any) block currently references it — showing its currently-resolved value (cache / env / default) as the prompt's own default, and writing whatever you answer (even if unchanged) back to the cache. The explicit "set these up now" step, the same role ccmake/cmake -L plays for a CMake cache; nothing else in meshfox requires running it. Requires a terminal; refuses to run (rather than silently do nothing or apply bare defaults) if stdin isn't one. Secret variables are never shown here — asking for one that's never cached and immediately discarded again wouldn't do anything useful.
• meshfox run only ever resolves/prompts for a variable that some block in the requested chain actually references (no separate configure step required, and no prompt at all for a block whose env= is empty or already fully resolved) — but it does so for the whole resolved chain up front, before running any of it, not block by block as each one's turn comes up. Without this, a variable only a block near the tail of a long chain references (e.g. a database password only the final load step needs) would only be asked for after everything ahead of it had already run — the same "resolve the whole chain's variables before starting" the web UI's own pre-run form (GET /api/vars) already does. A from=-computed variable is the one exception: nothing has run yet at preflight time, so it can't be resolved that early — it's still checked right before the block that needs it runs, once its source block has actually had the chance to produce it. --set NAME=value (repeatable) supplies overrides on the command line, the non-interactive equivalent of answering a prompt — the same flag CI would use in place of a TTY, which run otherwise requires whenever some referenced variable is still missing after --set/env/cache/default. A --set value is saved to the cache regardless of whether anything in the current invocation actually references it, same as cmake -D always updating CMakeCache.txt.

Options

Document-wide settings that flip a default behavior for the whole canvas — distinct from meshfox:var (a value asked for from whoever runs the document, and — unlike an option — declarable per-node too, see above) in that an option has no prompt and no value: it's either declared or it isn't. Declared as <!-- meshfox:option name="..." --> comments, only inside the root node's own body — an option is always document-wide, never per-node, so unlike meshfox:var it has no node-scoped form at all. A meshfox:option found in any other node, one missing name, or the same name declared twice, is a meshfox validate error.

<!-- meshfox:option name="unfold" -->

Currently defined options:

• unfold — the web UI's default is every node folded to a compact title-only chip except the root, so a large canvas opens navigable rather than as a wall of expanded nodes; declaring unfold flips that default to everything expanded. A single node can still override whichever default applies to it with its own fold= attribute (see "File structure" above) — the option only sets what an unset node falls back to.
• auto-timestamps — opts the whole document in to insert_child_node/ set_node_body's automatic createdAt/updatedAt stamping (see "Timestamps" above). Off by default — meshfox is first and foremost a documentation format, and most documents don't want bookkeeping churn on every regeneration (a cached block's output changing on every doc build, say, the way this project's own README.md's does). Worth turning on for a document that's genuinely a living record instead — a personal task tracker, a running log — where knowing when something was created or last touched is itself useful. Doesn't affect an explicit node meta --created-at — that works regardless, on any document.

An unrecognized name is not an error — options are meant to grow over time, and an older meshfox binary should still open a canvas written for a newer one, just without acting on whichever option it doesn't know about.

Hand-editing the comment directly always works, but the web UI's toolbar also has an "options" button that toggles a known option (currently just unfold) without touching the file by hand — it writes the same comment. An unrecognized declaration already in the file is left exactly as-is either way, whichever recognized ones are also toggled alongside it.

Tag colors

A node's color= (a JSON-Canvas preset "1"-"6" or a literal #rrggbb hex string) is normally set per node. meshfox:tag-color declares a document-wide default instead: any node carrying a given tag, with no color= of its own, picks up that tag's color automatically. Same placement restriction as meshfox:option (root-only, unlike meshfox:var, which also allows a node-scoped form — see "Variables" above) — and the same reasoning: the default applies to the whole document, not one node.

<!-- meshfox:tag-color tag="bug" color="1" -->
<!-- meshfox:tag-color tag="feature" color="4" -->

One declaration per tag rather than one comment listing every tag — a tag name may contain spaces or other characters a bare key="value" token can't safely stand in for, so tag= and color= each get their own quoted value.

Precedence, checked in this order:

1. The node's own explicit color=, if it has one — always wins.
2. Otherwise, the color declared for the first of the node's own tags (in the order written on that node) that has one.
3. Otherwise, no color — same as today.

A meshfox:tag-color missing tag= or color=, or the same tag declared twice, is a meshfox validate error — every other reader (run/view/tui, the server) falls back to no tag-derived colors at all rather than breaking, same best-effort split meshfox:option above has between "parses enough to view" and "fully valid".

Cached output

Running a cached block writes/updates a fenced block immediately after the source, wrapped in markers so re-runs replace just that region:

```bash name="build" cache
cargo build --workspace
```
<!-- meshfox:output name="build" hash="a1b2c3d4" -->
```text
exit code: 0 · 4.2s
...
```
<!-- /meshfox:output -->

The header line inside the text fence carries the exit code alongside how long the block's own process actually ran (meshfox_core::format_duration_ms — "842ms"/"2.3s"/"1m 05s"), so a re-opened canvas still shows the last run's duration, not just whether it succeeded. The web UI shows the same figure live, ticking up in real time while a block is still running (like a Livebook cell) rather than only once it's done.

With output="markdown" on the fence (see "Runnable code fences" above), the same region instead carries the captured stdout spliced in as real Markdown, with no wrapping fence and no exit code/duration header on a successful run:

```python name="df" cache output="markdown" interpreter="python3 -u"
print(df.to_markdown())
```
<!-- meshfox:output name="df" hash="a1b2c3d4" -->

| id | name |
|---:|:-----|
|  1 | ann  |

<!-- /meshfox:output -->

— which renders as an actual table instead of preformatted text. Any stderr the block produced comes first, as its own ordinary ​```text​ block — same shape the default (non-markdown) rendering always uses — regardless of where in the script's own execution order those lines actually landed relative to stdout: output="markdown" is about treating stdout as structured content worth parsing, and stderr (warnings, progress bars, tracebacks) was never meant to be part of that, so it's kept separate rather than interleaved into what gets rendered as Markdown. A failed run (exit_code != 0) still gets a leading bold **⚠ exit code: N · duration** line right before the stdout half, since the rendered content alone might not make that obvious. Because this content is genuinely re-parsed as Markdown/HTML by every downstream reader (unlike the fenced default, which is always inert), meshfox_core::output::write_output escapes any literal <!-- in it first (<!--) so a command's own output can never forge a meshfox:node/meshfox:edge/meshfox:output (or any other meshfox:*) comment — and a fence inside the region (a forged ```bash name="..." cache block, say) is never picked up as a real runnable or ```starlark constraint block either, the same way heading/meshfox:node detection (crate::mdcanvas::scan) treats the whole marker-to-marker region as opaque. output="markdown" is therefore meant for output you trust to look at, not output from an untrusted source — same trust level as any other Markdown already committed to the file.

The marker's own hash= is a short fingerprint (meshfox_core::fence::fingerprint) of everything about the fence that actually changes what running it does — its code, lang, interpreter=, and its env=/deps= references (by name, not a resolved value) — not a security hash, just a cheap way to tell "this output is still current" from "the fence changed since this ran": every reader (the web UI, the TUI) recomputes the fence's own live fingerprint and compares it against this stored one, showing the cached output as stale (still there, never silently discarded) whenever they differ, until the block is actually re-run. A marker written before this field existed has no hash= at all — treated the same as stale, since there's nothing to compare against.

Output (live or cached) that contains ANSI SGR color/style escape codes renders in color in the web UI, both while a block is still streaming and for a previously-cached block's saved output. Commands run without a pseudo-terminal, so a tool that auto-detects "not a real terminal" and disables its own color output (cargo, git, plain ls) prints plain text here unless it's told to force color (--color=always, or a script emitting raw escape codes itself).

Comments

<!-- meshfox:comment -->Any text<!-- /meshfox:comment -->

meshfox:comment//meshfox:comment are, by themselves, nothing but two ordinary HTML comments — invisible to any Markdown renderer, meshfox included. The text sitting between them, though, is completely ordinary Markdown as far as a plain renderer (GitHub, a text editor's preview, ...) is concerned, so it renders there like any other paragraph — but meshfox's own tooling (the web UI, the TUI, static/pdf export, meshfox run's prompts) recognizes the marker pair and drops the whole region, markers and text alike, before a node's body ever reaches any of them. A node's raw Markdown on disk always keeps the region intact either way; only what meshfox itself shows strips it.

That makes it the place to put context meant only for someone reading the raw file outside meshfox — most commonly a short "this is a meshfox document" note, since meshfox's own UI already makes that obvious just by existing. meshfox create (and meshfox view --create) writes exactly that as the new file's root body:

<!-- meshfox:canvas -->
### My Project

<!-- meshfox:comment -->
> This is a [meshfox](https://meshfox.orofarne.net/) document — open it
> with `meshfox view` (or `meshfox tui`) for the interactive canvas.
> This note is only visible here, in a plain Markdown viewer.
<!-- /meshfox:comment -->

A file/link/include node's body rule ("starts with exactly one Markdown link") is checked after stripping — a comment-wrapped blurb alongside the link doesn't count against it. Fence-aware, same as heading/node-comment scanning elsewhere in this spec: a marker written literally inside a code fence (e.g. showing someone this exact syntax) is left alone rather than treated as a real region.

Formal grammar

Reference EBNF for every meshfox:* construct described above, collected in one place. This is documentation only — kept in sync by hand with the actual parsers (crates/core/src/{mdcanvas,vars,options,tag_colors,fence,attrs,comment,output}.rs and the mirrored bits of the web/TS side), not generated from either one or used to generate either one. The syntax is simple and stable enough (single-line constructs, no nesting) that a parser generator would only buy correctness on the Rust side, while the web/TS side still needs its own hand-written reader regardless — the same reasoning already applied to future extensions. Treat a mismatch between this grammar and the code as a bug, usually in this grammar rather than the code.

Notation: ::= defines, | alternation, [x] optional, {x} zero-or-more, 'x' a literal, <x> a prose-described terminal.

Lexical building blocks

Shared by every construct's attribute list (crates/core/src/attrs.rs):

attr-list   ::= { ws attr }
attr        ::= key '=' value | key
key         ::= key-char { key-char }
key-char    ::= <any character except whitespace, '=', '"'>
value       ::= '"' { <any character except '"'> } '"' | bare-value
bare-value  ::= <one or more characters, none of them whitespace>
ws          ::= <one or more whitespace characters>

A bare key with no =value is a flag, equivalent to key="true". An unquoted value can't itself contain whitespace — there's no escape for that, only wrapping it in "..." instead. Attribute order is never significant; the same key written twice keeps whichever occurrence the tokenizer's map-insert resolves to last (last write wins) — not itself a parse error, though a specific construct's own semantic rules below may still reject the result.

Markers

Every meshfox:* construct is an HTML comment, matched line-by-line, and fence-aware: a marker written literally inside a code fence (a documentation example, cached output that happens to contain one, ...) is never treated as a real one. That scanning rule is a document-structure property, not part of any single line's own grammar, so it's stated once here instead of being repeated per construct below.

node-marker      ::= '<!--' ws 'meshfox:node' attr-list ws '-->'
edge-marker      ::= '<!--' ws 'meshfox:edge' attr-list ws '-->'
canvas-marker    ::= '<!--' ws 'meshfox:canvas' ws '-->'
var-marker       ::= '<!--' ws 'meshfox:var' attr-list ws '-->'
option-marker    ::= '<!--' ws 'meshfox:option' attr-list ws '-->'
tag-color-marker ::= '<!--' ws 'meshfox:tag-color' attr-list ws '-->'
output-open      ::= '<!--' ws 'meshfox:output' attr-list ws '-->'
output-close     ::= '<!--' ws '/meshfox:output' ws '-->'
comment-open     ::= '<!--' ws 'meshfox:comment' ws '-->'
comment-close    ::= '<!--' ws '/meshfox:comment' ws '-->'

ws around the tag name/--> above may match zero characters in practice (the parser trims, it doesn't require padding) — written as ws rather than [ws] only to reuse the same rule name as attr-list.

Attribute vocabularies

Each construct restricts attr-list (above) to its own known keys — the vocabulary meshfox validate's unknown_*_attr checks enforce, though every other consumer (run/view/tui, the server) keeps silently accepting an unrecognized key, for forward/backward compatibility across format versions (see "Options" above).

node-attr      ::= 'id' | 'type' | 'x' | 'y' | 'w' | 'h' | 'color'
                 | 'tags' | 'parent' | 'fold' | 'edgeLabel' | 'display'
                 | 'lang' | 'interpreter' | 'preview'
edge-attr      ::= 'from' | 'label' | 'color' | 'style' | 'arrowStart'
                 | 'arrowEnd' | 'tags'
var-attr       ::= 'name' | 'type' | 'prompt' | 'default' | 'default_var'
                 | 'choices' | 'choices_var' | 'secret' | 'required'
                 | 'session' | 'from'
option-attr    ::= 'name'
tag-color-attr ::= 'tag' | 'color'
output-attr    ::= 'name'

display/lang/interpreter/preview only mean something when type is file/link (see "Node types"); meshfox validate enforces that cross-attribute constraint separately — this grammar only fixes the set of keys a line may use, not which combinations of them make sense together (same for every other "mutually exclusive with..." rule described in prose above, e.g. default/default_var/from on a meshfox:var).

Fence info strings

A code fence's info string (the text right after the opening ```) uses the same attr-list grammar, with the fence's language as an unnamed leading token instead of a key=value pair (crates/core/src/fence.rs):

fence-info      ::= lang [ ws attr-list ]
lang            ::= bare-value

runnable-attr   ::= 'name' | 'cache' | 'default' | 'deps' | 'env' | 'tty'
                 | 'autoclose' | 'service' | 'always' | 'interpreter'
constraint-attr ::= 'constraint' | 'name'

A runnable fence additionally requires lang to be bash or sh, or its own interpreter= attribute set (see "Runnable code fences"); a constraint fence requires lang = 'starlark' and the bare constraint flag (see "Constraint fences") — again, cross-cutting rules enforced by the fence scanner/meshfox validate, not expressible in fence-info alone.

Values with their own inner structure

A handful of attribute values are themselves small comma-separated grammars, layered on top of value (above) rather than on attr-list itself:

tag-list     ::= tag { ',' tag }
tag          ::= <one or more characters, none of them ',' or '"'>

deps-list    ::= deps-entry { ',' deps-entry }
deps-entry   ::= [ node-id '/' ] block-name [ '!' ]

env-list     ::= env-entry { ',' env-entry }
env-entry    ::= [ '$' ] var-name [ '=' [ '$' ] var-name ]

choices-list ::= choice { ',' choice }
choice       ::= <one or more characters, none of them ','>

tags= (on a node or edge), deps=, env=, and choices= (plus choices_var='s resolved value, split the same way) each use one of these — see each attribute's own entry above for what the pieces mean.

Ordinary Markdown (a node's own body) and Starlark (a constraint fence's own script) are each a complete grammar of their own — CommonMark and Starlark respectively — and out of scope here.

Minimal example

<!-- meshfox:canvas -->
# Hello Project
<!-- meshfox:node id="root" -->

Project root.

## Tests
<!-- meshfox:node id="tests" type="group" -->

### Smoke Test
<!-- meshfox:node id="smoke-test" -->

```bash name="smoke" cache
echo "hello from meshfox"
```

Addressed as: meshfox run tests smoke-test smoke (node-id path from root, then the block name).

CLI

• meshfox run [--no-deps] <path...> <names> — run one or more comma-separated named blocks reached by walking node ids from the root. Each named block's deps chain runs first, automatically, in dependency order; a dependency shared by several requested blocks only runs once. --no-deps skips this and runs only the named blocks themselves, in the order given — the CLI equivalent of the web UI's plain "run" button next to "⛓ run chain". If a node has a default block (see "Runnable code fences" above — one explicitly flagged default, or one whose name already matches the node's own id), the trailing name can be dropped: meshfox run tests smoke-test addresses that node's default block directly, instead of meshfox run tests smoke-test <block-name>, tried first as an ordinary address and only falling back to this when that doesn't resolve, so it never changes the meaning of an address that already worked. Output prints line by line as the block produces it, not all at once after it exits — the exit code, printed last, genuinely isn't known any sooner. Ctrl+C kills whichever step is currently running (the whole process group it spawned, not just bash) and stops there; whatever earlier steps in the chain already completed stays cached on disk.
• meshfox list — print every runnable block as an indented tree, each with its [button]/[cache]/[default]/[tty]/[deps: ...]/[env: ...] flags and a ready-to-paste meshfox run <path...> <name> — so you don't have to go spelunking through the file to find out what's runnable. A node whose only block is its default gets a single merged tree line instead of a separate one for the node and another for the block; a node with a default block and other blocks besides gets the node-id shortcut printed on its own header line instead, alongside its other blocks' own lines.
• meshfox view [--port] [--no-open] — local web UI, read-only until "Edit" is clicked in the browser. A run's output streams into the browser live, line by line, as it happens, rather than appearing all at once when the block finishes; a running block gets a Kill button, for when one hangs. A tty block instead opens a real interactive terminal panel — see "Interactive (tty) blocks" above.
• meshfox validate — parse-only validation (single root, no duplicate ids, no dangling edges, type body rules, no dangling/cyclic deps=); no execution, no writes. Exit non-zero on error — usable in CI/pre-commit.
• meshfox check — run every embedded constraint fence's Starlark contract (see "Constraint fences" above) and report pass/fail per fence. Exit non-zero if the file fails to parse or any constraint fails — usable in CI/pre-commit alongside (or instead of) validate.
• meshfox spec — print this specification.

list/view/validate/check (and every other subcommand with a positional slot free for it — configure/create/tui/static/pdf) take the canvas path either as an optional positional argument or via --canvas (the two are mutually exclusive — pick one). run and node <op>, whose own positional slot is taken by other arguments, accept only --canvas. Any command can also take it as a single leading argument before the subcommand itself — meshfox path/to.canvas.md validate — recognized by its .md suffix, since node ids never have one; that leading form is spliced into whichever of the two shapes the subcommand that follows actually expects, before it overrides the subcommand's own path/--canvas if both are given. Omit it entirely and any of them auto-discover the single *.canvas.md (or marked *.md) file in the current directory — except create, which always requires an explicit path, since there's nothing to auto-discover for a file that doesn't exist yet.

Markdown in meshfox

A node's own body (and this file's own prose) is Markdown — but "Markdown" here means CommonMark plus a specific, deliberately narrow set of extensions, some borrowed from GitHub/GFM, some meshfox's own. This is the reference for that surface: what's supported, in what syntax, and — since meshfox renders the same document four different ways (web canvas, meshfox tui, static-site export, PDF export) through two independent Markdown engines (react-markdown/remark on the web side, pulldown-cmark on every Rust side) — which of those four actually render each one.

This is about Markdown itself. For meshfox:* HTML-comment bookkeeping (meshfox:node, meshfox:var, ...) see SPEC.md instead — including its own "Formal grammar" section for that syntax's EBNF.

Headings become nodes

The single biggest departure from plain Markdown: a heading isn't just a heading here, it's the tree structure.

• The document's first # is always the root node, whether or not it's marked.
• Any other heading (##...######) becomes a node only if immediately followed by a <!-- meshfox:node ... --> comment — an unmarked heading is just prose, free to use for sub-structure inside a node's own body without fragmenting the canvas.
• A node's parent is normally the nearest enclosing shallower node heading. ###### (H6) is CommonMark's own depth ceiling — nesting further than that means writing more ###### headings and pointing parent= at the real parent explicitly, since heading depth alone can't express it past six levels.

Full attribute reference (id, type, x/y, tags, parent, ...): SPEC.md's "File structure" and "Node types" sections.

Already-standard extensions

Enabled beyond bare CommonMark, before any of meshfox's own additions:

Feature	Syntax	web	static/PDF	TUI
Tables	| a | b |	yes	yes	yes
Strikethrough	~~text~~	yes	yes	yes
Task lists	- [ ] x	yes	yes	yes — a [ ]/[x] appended after the item's own bullet/number marker
Footnotes	[^1]	yes	yes	yes — reference renders as real Unicode superscript when the label maps fully (the common numeric case), else a bracketed literal ([note]); the definition gets its own segment, a bracketed label line followed by its body

pulldown-cmark's task-list/footnote support introduces its own event kinds (Event::TaskListMarker, Event::FootnoteReference, Tag::FootnoteDefinition) that TUI's hand-rolled renderer (crates/cli/src/tui/markdown.rs — hand-rolled over the event stream rather than a ready-made "Markdown to terminal" crate, see its own module doc) needed explicit handling for; the two Options flags stayed off until that handling existed, since turning them on without it would have silently dropped the checkbox/reference marker rather than showing plain literal text. One real divergence from web/static: a footnote reference's display number isn't renumbered into first-reference order the way pulldown-cmark's own HTML writer does (that needs a lookahead pass over the whole document; TUI's renderer is a single streaming pass) — it shows the label as written, which in practice is already the sequence number a document's author wants shown.

meshfox's own narrow extensions

Three come from TODO.canvas.md's "markdown-extensions" discussion — kept deliberately narrow (a small, well-defined grammar) rather than adopting any single flavor's full feature set wholesale, since every one of them needs an independent implementation on both the Rust side and the web side (pulldown-cmark and remark share nothing with each other).

Image size ({width=..}/{height=..})

GitLab/Pandoc-style, written with no space directly after an image's closing ):

![alt](pic.png){width=300}
![alt](pic.png){height=50%}
![alt](pic.png){width=300 height=50%}

Only width=/height=, each a bare integer (pixels) or integer+%, each at most once — not Pandoc's full {.class #id ...} attribute grammar. Anything that doesn't match this exact shape is left alone as ordinary literal text.

	web	static/PDF	TUI
Support	full — real width/height on the rendered <img>	full, same as web	% only, scales the terminal image protocol's fixed size budget; a literal pixel value is parsed but has no effect (no pixel grid to map it onto)

Shared parser: crates/core/src/image_attrs.rs (Rust) / web/src/remarkImageAttrs.ts (web).

Subscript / superscript (x~2~ / x^2^)

Pandoc/kramdown-style: a single (not doubled) ~/^, content with no internal whitespace, non-empty.

H~2~O and E=mc^2^

Deliberately narrow for the same reason as image size — and, on the web side specifically, narrow enough to need disambiguating from GFM's own strikethrough (~~text~~, and — looser than pulldown-cmark — GFM strikethrough also accepts a single, non-doubled ~): remarkSubSup.ts reclaims exactly the shape this grammar defines (single tilde, no internal or flanking whitespace) back from remark-gfm's strikethrough parsing; anything wider (~~doubled~~, or a single-tilde run with a space inside or around it) stays real strikethrough on both sides.

	web	static/PDF	TUI
Support	real <sub>/<sup> elements	real <sub>/<sup> elements	Unicode small-form character substitution (₂, ⁿ, ...) where a full mapping exists for every character in the marked run; falls back to the literal ~text~/^text^ source otherwise — coverage is genuinely incomplete (e.g. no subscript for q/b/c/d/f/g/w/y/z, no uppercase at all)

Shared scanner: crates/core/src/subsup.rs (Rust) / web/src/remarkSubSup.ts (web, plus its own reclaim pass).

GFM alert blockquotes (> [!NOTE]/...)

GitHub's alert syntax — a blockquote whose first line is exactly one of [!NOTE], [!TIP], [!IMPORTANT], [!WARNING], [!CAUTION]:

> [!WARNING]
> Be careful here.

The marker line is never shown — it's parsed out entirely, not just hidden by CSS.

	web	static/PDF	TUI
Support	full — icon + label + color via CSS (.markdown-alert-*)	full, same CSS scheme (site-template/style.css)	full — a colored icon+label title line ahead of the (otherwise ordinary) quoted body

On the Rust side this is native: pulldown-cmark's own Options:: ENABLE_GFM parses and strips the marker, handing back Tag::BlockQuote(Some(BlockQuoteKind)) — no hand-rolled parsing needed. remark-gfm doesn't cover alerts (they're a GitHub UI convention, not part of the GFM spec it implements), so the web side has its own small plugin instead: web/src/remarkGfmAlerts.ts.

Nobody has to type x/y/w/h by hand. The web UI lays out anything still unpositioned live, in the browser.

GET /api/canvas sends exactly what's in the file — no computed suggestion, no suggestedX/etc. over the wire. web/src/autolayout.ts fills in a box client-side for anything still missing a real position: sections (root and its direct children) read top-to-bottom with just a small nudge to the right, same as a document's title followed by its headings — not yet a real indent. From there down it's a classic indented tree view, the same shape as a file tree or a collapsed outline: each section's own content steps fully to the right of its parent, siblings at a given depth stack vertically without overlapping, and further nesting keeps stepping right from there, with a group's box always the bounding box of its resolved members. Width is tier-based: root and its direct children share one width, 60% of the viewport; everything deeper gets 55%, uniformly regardless of how much deeper. Viewport width is read once, when the canvas loads — it doesn't recompute on window resize. Height is never estimated: it comes from React Flow's own measurement of each node's actual rendered content, live — the layout self-corrects as soon as a real measurement lands (and again later, e.g. as a running block's output grows). A depth-≥2 node additionally gets a max-height cap so one long block can't drag a whole subtree far from its parent; past the cap it scrolls internally (.mesh-node-body's existing overflow: auto) instead of growing the box further. None of this is ever written to the file just from loading it — a node only gets its box persisted once it's actually been dragged/resized (see touchedNodeIds in App.tsx).

Edit mode's toolbar has an Auto-layout button that clears every non-group node's stored x/y/w/h in the file outright (POST /api/canvas/clear-layout), reverting the whole document to auto-placed — behind a confirmation dialog, since it can't be undone from the UI. Useful for backing out of a bunch of hand-placed positions and letting the client lay everything out fresh.

Edit mode's toolbar also has an ⚙ options button, next to Auto-layout: it toggles meshfox:option declarations — unfold (flips whether the canvas opens with every subtree expanded or folded to a compact outline by default) and auto-timestamps (opts the document in to automatic createdAt/updatedAt stamping, off by default — see SPEC.md's "Timestamps") — via PUT /api/options, writing the same comment hand-editing would. See SPEC.md's "Options".

Document-scoped config values a canvas wants from whoever runs it — declared once as <!-- meshfox:var ... --> comments in the root node (this document declares exactly one, INSTALL_PATH, right above "Concept" — invisible here since it's an HTML comment, same as every other bit of meshfox bookkeeping). Declaring one doesn't put it in any block's environment by itself, though — a block has to opt in with its own env= fence attribute to actually reference it (env="$INSTALL_PATH", see "Install" below), and only blocks that do ever resolve or prompt for anything: running any other block in this file never asks about INSTALL_PATH, however many blocks elsewhere might use it. Asked for interactively the first time some block's env= actually needs it, then remembered in a local .meshfox/<filename>.env cache (.gitignored, analogous to CMake's CMakeCache.txt) so it's not asked for again by any block referencing it afterward. meshfox configure walks every declared variable up front regardless of env= usage; meshfox run --set NAME=value supplies one non-interactively (e.g. for CI); the web UI shows a small form in place of a prompt, scoped to just the clicked block's own chain, only for whatever isn't already resolved. See SPEC.md's "Variables" for the full writeup, including secret (never cached, always re-asked) and the int/bool/select types.
